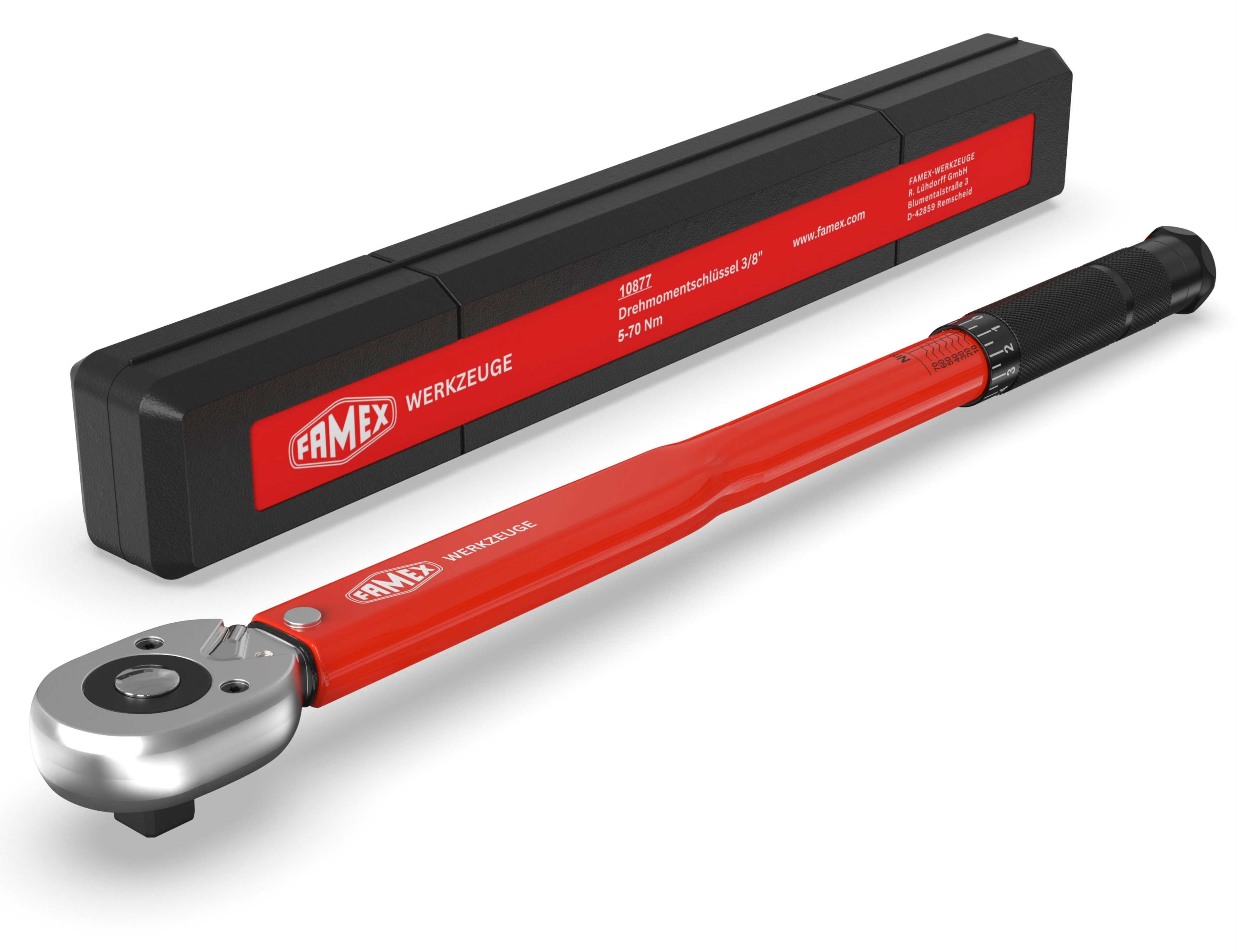

FAMEX 10877 torque wrench, 10 mm (3/8 inch) drive, 5-70 Nm, both directions

The torque wrench's measuring range of 5 Nm to 70 Nm covers the usual tightening torques for wheel bolts on bicycles, e-bikes, motorcycles and cars. The torque wrench is designed for right- and left-handed operation and has a quick-release/locking mechanism for the attached tool. It is also possible to quickly lock the set torque. When the torque is reached, the torque is indicated audibly, tangibly and visibly. The head of the torque wrench bends slightly when the torque is reached. A reversible ratchet ensures more comfortable handling.

Torque wrench of especially high quality for the demanding user:

• measuring range 5-70 Nm
• for measurement in both directions of rotation
• for right- and left-hand threads
• carefully calibrated to +/- 3%
• each torque wrench is additionally tested

intended use:

work on motor vehicles, motorcycles, bicycles

Function:

• The applied torque is indicated audibly, tangibly and visibly
• The head of the torque wrench bends slightly when the torque is reached
• With reversible ratchet for more comfortable handling
• With quick-action locking of the set torque value
• The torque wrench is designed for right- and left-handed threads
• With quick-release/locking mechanism for the attached tool

Equipment:

• with detailed operating instructions
• supplied with calibration certificate

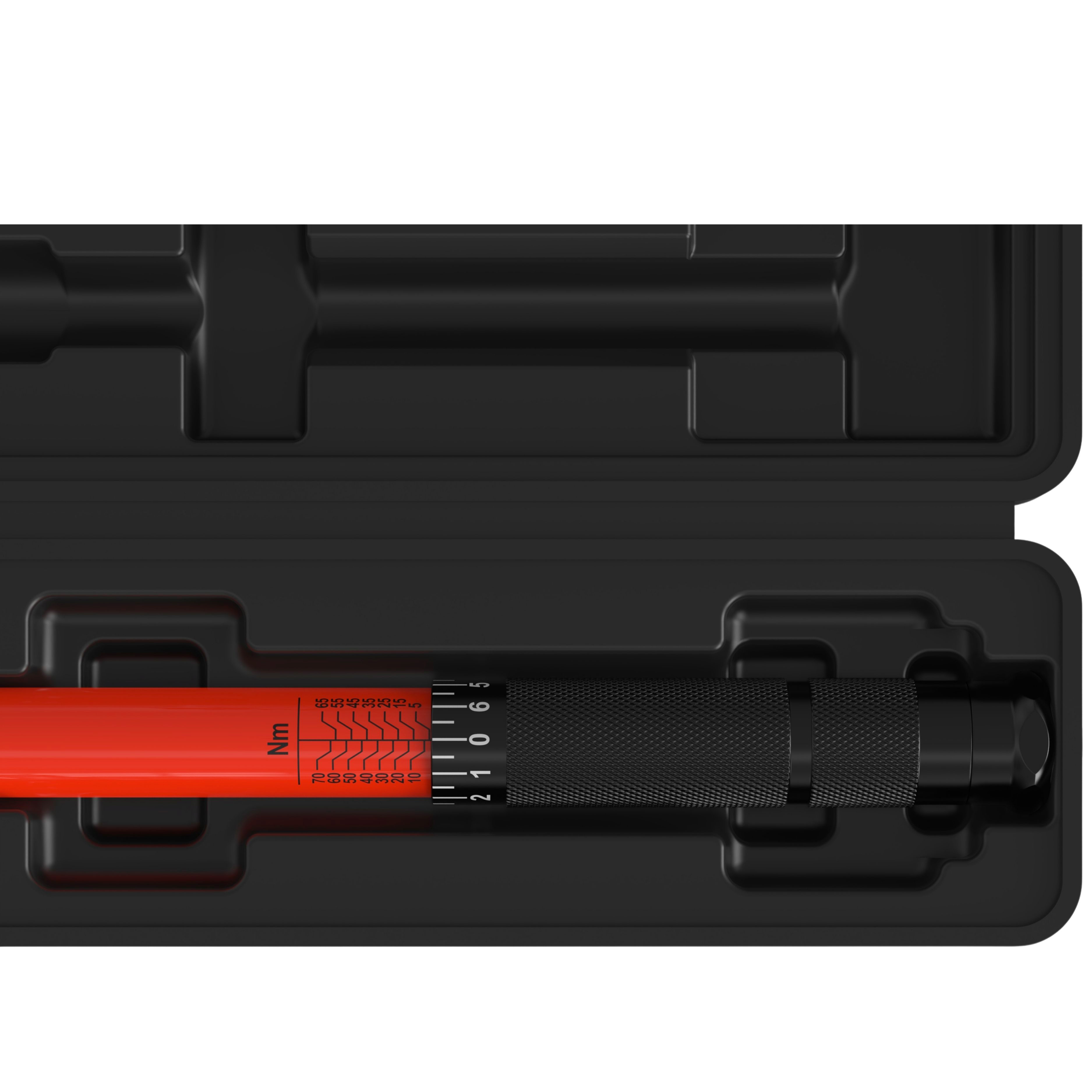

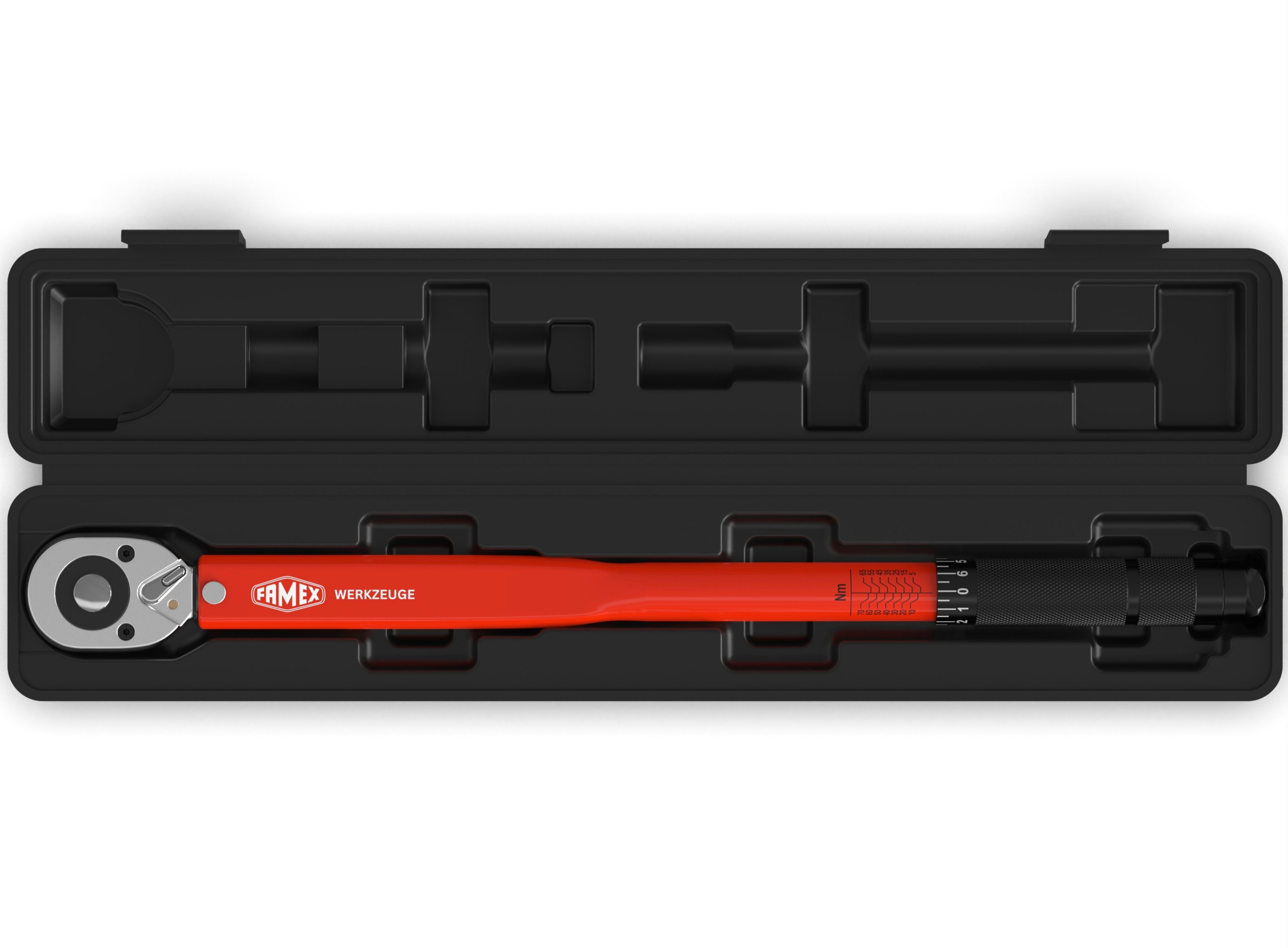

• in a sturdy plastic case

Dimensions:

length of the torque wrench: approx. 36 cm

measurement of the torque in both directions of rotation

• controlled screw tightening for right-hand and left-hand threads
• for controlled loosening of screw connections
• indispensable for screw connections where a certain tightening torque is specified
• The torque wrench has a ratchet mechanism with a switchover lever for changing the direction of rotation

Display of the achieved torque

• audible: a clicking sound is heard (at low torque settings, the clicking sound is weaker)
• tangible: significant change in resistance when the torque is reached
• visible: when the torque is reached, the head of the torque wrench bends slightly
